Stress-induced ethylene production by soybean symbiotic systems depending on genetic characterization of Bradyrhizobium strains

Modern Phytomorphology

All submissions of the EM system will be redirected to Online Manuscript Submission System. Authors are requested to submit articles directly to Online Manuscript Submission System of respective journal..

Research - Modern Phytomorphology ( 2022) Volume 16, Issue 2

Stress-induced ethylene production by soybean symbiotic systems depending on genetic characterization of Bradyrhizobium strains

Tetiana Mamenko* and Sergii Kots

Institute of Plant Physiology and Genetics, National Academy of Sciences of Ukraine, Ukraine

*Corresponding Author:
Tetiana Mamenko, Institute of Plant Physiology and Genetics, National Academy of Sciences of Ukraine, Ukraine, Email: [email protected]

Received: 29-Mar-2022, Manuscript No. mp-22-58838 ; Accepted: 26-Apr-2022, Pre QC No. mp-22-58838 (PQ); Editor assigned: 30-Mar-2022, Pre QC No. mp-22-58838 (PQ); Reviewed: 18-Apr-2022, QC No. mp-22-58838 (Q); Revised: 19-Apr-2022, Manuscript No. mp-22-58838 (R); Published: 04-May-2022

Abstract

The production of ethylene by soybeans symbiotic systems associated with different Bradyrhizobium strains during the treatment of seeds with fludioxanil (fungicide) and exposure to drought was studied. It was found that the intensity of ethylene release by soybean plants during pre-sowing fungicide seed treatment and insufficient water supply primarily depends on the genetic characteristics and symbiotic properties of the of Bradyrhizobium strain. It is shown that the treatment of soybean seeds with a fungicide does not significantly change the dynamics of ethylene production by soybean plants in symbiosis with different strains of Bradyrhizobium japonicum under drought conditions. This proves the possibility of using seed inoculation with active rhizobia strains in combination with fungicide treatment for soybean cultivation in arid conditions.

Keywords

Glycine max (L.) Merr., Bradyrhizobium japonicum, ethylene, strain, fungicide, drought

Introduction

Ethylene is an important regulator of many physiological processes in higher plants, including legumes (Khan et al., 2017; Dubois et al., 2018). In the formation of legume-rhizobial symbiosis, it participates in the immune response of the host plant, organogenesis of the nodules, the location of the nodules on the roots, bacterial differentiation and aging nodules (Reid et al., 2018). Ethylene functions as a mediator of plant responses to stressors of biotic and abiotic nature (Dubois et al., 2018; Nascimento et al., 2018; Riyazuddin et al., 2020). It is believed (Wang et al., 2002) that ethylene synthesis is necessary for the transduction of the external signal and indicates the transition of cellular metabolism to a stressful state, initiates the formation of general and specialized mechanisms of adaptation. The formation of stress-induced ethylene is considered one of the fastest plant responses to the action of stressors, including its defense systems (Chen et al., 2022). In this aspect, studies of the participation of this phytohormone in the formation of legume-rhizobium symbiosis under the action of stress factors of various nature are relevant. It has been previously investigated that the synthesis of ethylene by soybean plants during fungicide seed treatment under optimal growing conditions depends on the effectiveness of symbiotic systems with rhizobia strains, their ability to realize their symbiotic potential (Mamenko et al., 2020). Soybean is a very sensitive crop to growing conditions (Kunert et al., 2016), so any changes in environmental conditions, especially temperature and water regime, can affect the formation of its symbiosis with nodule bacteria. In this aspect, it is promising to study the intensity of ethylene production by soybean plants in symbiosis with different genetic characteristics and diversity of Bradyrhizobium strains under drought conditions. Exploring the possibility of using fungicidal treatment of soybean seeds under drought is important to identify effective symbiotic systems with rhizobia, which are able to realize their adaptive potential. The aim was to study the production of ethylene by symbiotic soybean systems formed by different genetic characteristics and efficiency of rhizobia strains during seed treatment with fludioxanil (fungicide) and exposure to drought.

Materials and Methods

The studies were conducted under controlled vegetation conditions using soybeans plants (Glycine max (L.) Merr.) of Almaz variety–an early ripening variety, recommended for cultivation in the Forest-Steppe of Ukraine. Soybean-rhizobium symbioses of different efficiency were created by inoculating soybean seeds with strains of nodule bacteria (Bradyrhizobium japonicum) (titer 108 cells per 1 ml), which differ in genetic characteristics and diversity: active, virulent Tn5 mutant B1-20–created by transposon mutagenesis with Esherichia coli S17- 1 with plasmid pSUP5011 containing transposon Tn5 (pSUP5011::Tn5mob) at the Institute of Plant Physiology and Genetics of NAS of Ukraine; inactive, highly virulent strain 604k–a mutant that has lost the ability to effectively symbiosis and isolated from the nodule during the passage of strain 604 through soybean plants in the zone of high radiation–«cesium spot» (Tolkachev et al., 1999).

Before sowing, soybean seeds were treated with a solution of fludioxonil (25 g/L), and then inoculated with rhizobia suspensions (B1-20 and 604k) for one hour. The plants were cultivated in pots on sandy medium with the addition of Herligel nutrient solution (0.25 nitrogen norm). Drought stress treatments were measured and applied based on the Field Capacity (FC). The plants were exposed to different water regimes–60% FC as control (optimal water supply), 40% FC (moderate drought) and 30% FC (severe drought). Drought was created by stopping watering of plants from sowing seeds to substrate to the stage of cotyledons (40% FC) with increasing its action in the stage of primordial leaves (30% FC). Watering of plants was resumed to the optimal level (60% FC) in the first true leaf stage. Soybean plants inoculated with rhizobia without the use of fungicide treatment, which were grown under optimal water supply conditions, served as controls.

To determine the intensity of ethylene release, samples of plant material of known mass were placed in 75 ml glass vials that were sealed and left in the dark for 24 hours (Guzmán & Ecker, 1990). After incubation, the ethylene-containing gas mixture was analyzed on an «Agilent GC system 6850» gas chromatograph (USA) with a flame ionization detector. The volume of the analyzed sample of the gas mixture was 1 ml. Pure ethylene (Sigma-Aldrich, USA) was used as a standard. The amount of ethylene isolated from the incubated sample was expressed in nmol C2 H4 per plant. The data are presented in the figures as x ± SD (x ± standard deviation). Differences between values in the control and experimental groups were determined using the Tukey test, where they were considered significant at P<0.05.

Results and Discussion

It was found that moderate drought in the cotyledon stage induced a decrease in ethylene production in soybean plants in the variant without the use of seed bacterization and fungicide treatment by 24.5% (Fig. 1A). Whereas the fungicide seed treatment and the absence of inoculation with rhizobia revealed a significant decrease in ethylene production by soybean plants by 14.2% with moderate dehydration (40% FC). With increasing drought (30% FC) in the stage of primordial leaves, an increase in the intensity of ethylene release by soybean plants was recorded in both variants–without bacterization by 82.9% and with fungicide treatments by 97.9% (Fig. 1A). After the action of water stress in the first true leaf stage, an increase in the production of ethylene by plants in soybean without the use of seed bacterization by 36.8% was revealed, and also by 13.1% when the seeds were treated with a fungicide (Fig. 1A). Thus, almost the same levels of ethylene production by soybean plants were recorded in both studied variants during prolonged drought. However, in the post-stress period, a faster recovery of ethylene production levels to control (60% FC) in soybeans during fungicide seed treatment was found. Pre-sowing treatment of seeds with a fungicide could be a kind of stress factor and induce restructuring of metabolism of soybean plants, which proved to be more tolerant to appropriate growing conditions, in particular, changes in water regime.

Inoculation of soybean seeds with different genetic characteristics and diversity of Bradyrhizobium japonicum in the conditions of optimal water supply led to significant production of ethylene by plants in the stage of primordial leaves. In particular, in the soybean symbiotic system with inactive rhizobia strain 604k ethylene release by plants increased by 82.7%, and in soybean symbiosis with active Tn5 mutant B1-20–by 89.4%, compared with its synthesis in soybeans without use of bacterization (Fig. 1A-1C). It is in the stage of primordial leaves that nodule primordia are formed on soybean roots, and it is known that the phytohormone ethylene plays a key role in the regulation of the formation and initiation of nodules on legume roots (Weller et al., 2015).

modern-phytomorphology-Stress-induced

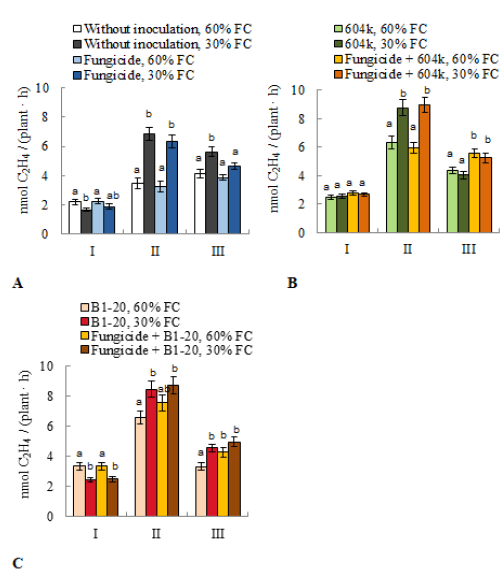

Figure 1: A): Stress-induced ethylene production by soybean plants without seed bacterization; B): inoculation with rhizobia of strain 604k; C) Tn5
mutant B1-20 in the stages of cotyledons (I), primordial leaves (II) and the first true leaf (III) ); (x ± SD, n=10).

In the soybean symbiotic system with inactive Bradyrhizobium strain 604k, no significant changes in the levels of ethylene production by plants were found between the studied variants under moderate drought (40% FC) in the cotyledons stage (Fig. 1C). Prolonged dehydration (30% of FC) in the stage of primordial leaves showed an increase in ethylene release in soybean plants in symbiosis with inactive rhizobia strain 604k by 38.3%, while for fungicide seed treatment–by 42.1%. In the post-stress period in soybean plants inoculated with rhizobia strain 604k, the level of phytohormone synthesis approached the control (60% FC). Whereas in soybeans with seed bacterization (strain 604k) and fungicide treatment, its production was 19.8% higher than the control (60% FC) (Fig. 1B). Thus, the level of ethylene release by soybean plants in symbiosis with inactive rhizobia strain 604k did not increase significantly under drought, and also practically recovered to the optimum level (60% FC) in the post-stress period. A similar trend in the intensity of ethylene production by plants with changes in water regime was recorded in soybeans inoculated with inactive rhizobia strain 604k for seed treatment with a fungicide. Moderate dehydration (40% of FC) in the stage of cotyledons in soybean symbiosis with active rhizobia Tn5-mutant B1-20 revealed a decrease in ethylene synthesis by plants by 27.4%, while the treatment of seeds with fungicide–by 25.1%. With the duration of drought (30% FC) in the stage of primordial leaves, the levels of ethylene production by plants increased by 28.7% in soybeans inoculated with active rhizobia B1- 20, and when using fungicide seed treatment–by 32.9%. After the action of water stress, increased production of phytohormone by plants was found in soybean symbiosis with active rhizobia of Tn5 mutant B1-20 by 37.7%, as well as in fungicide treatment–by 48.9% (Fig. 1C). The obtained data indicate an insignificant level of ethylene production by plants during prolonged dehydration in soybean symbiotic systems with active rhizobia of Tn5 mutant B1- 20, as well as when using seed treatment with fungicide. The production of ethylene by soybean plants in effective symbiosis in the post-stress period remains at almost the same level as during drought in the stage of primordial leaves. Obviously, in soybeans in symbiosis with active rhizobia Tn5-mutant B1-20 under insufficient water supply there are specific changes in metabolic processes, the level of functioning of which does not change after the resumption of watering plants. This could be the result of a peculiar adaptive response of soybean plants in symbiosis with active rhizobia B1-20 to arid growing conditions. Similar dynamics of ethylene production by soybean plants in symbiosis with active rhizobia of Tn5 mutant B1-20 was recorded during seed treatment with fungicide. The reaction of soybean plants to dehydration during fungicide seed treatment and inoculation with inactive rhizobia strain 604k was similar.

Conclusions

The intensity of ethylene release by soybean plants in symbiosis with Bradyrhizobium japonicum in drought conditions for fungicide seed treatment depends primarily on the genetic characteristics and symbiotic properties of strains. Pre-sowing fungicide seed treatment under the influence of drought does not have a negative impact on the formation of different soybean symbiotic systems with Bradyrhizobium strains, which proves the possibility of their joint use in soybean cultivation.

References

Chen H., Bullock Jr D.A., Alonso J.M., Stepanova A.N. (2021). To fight or to grow: the balancing role of ethylene in plant abiotic stress responses. Plants 11: 33.
Google Scholar      Cross Ref

Dubois M., Van den Broeck L., Inzé D. (2018). The pivotal role of ethylene in plant growth. Trends in Plant Sci 23: 311-323.
Google Scholar      Cross Ref

Husain T., Fatima A., Suhel M., Singh S., Sharma A., Prasad S.M., Singh V.P. (2020). A brief appraisal of ethylene signaling under abiotic stress in plants. Plant Signaling Behavior 15: 1782051.
Google Scholar      Cross Ref

Guzman P., Ecker J.R. (1990). Exploiting the triple response of Arabidopsis to identify ethylene-related mutants. The Plant Cell 2: 513-523.
Google Scholar      Cross Ref

Khan N.A., Khan M.I.R., Ferrante A., Poor P. (2017). Ethylene: a key regulatory molecule in plants. Frontiers in Plant Sci 8: 1782.
Google Scholar      Cross Ref

Kunert K.J., Vorster B.J., Fenta B.A., Kibido T., Dionisio G., Foyer C.H. (2016). Drought stress responses in soybean roots and nodules. Frontiers in Plant Sci 7: 1015.
Google Scholar     Cross Ref

Mamenko T.P., Kots S.Y., Khomenko Y.O. (2020). The intensity of ethylene release by soybean plants under the influence of fungicides in the early stages of legume-rhizobial symbiosis. Regulatory Mechanisms in Biosystems 11: 98-104.
Google Scholar    Cross Ref

Nascimento F.X., Tavares M.J., Rossi M.J., Glick B.R. (2018). The modulation of leguminous plant ethylene levels by symbiotic rhizobia played a role in the evolution of the nodulation process. Heliyon 4: e01068.
Google Scholar    Cross Ref

Reid D., Liu H., Kelly S., Kawaharada Y., Mun T., Andersen S.U., Desbrosses G., Stougaard J. (2018). Dynamics of ethylene production in response to compatible Nod factor. Plant Physiology 176: 1764-1772.
Google Scholar    Cross Ref

Riyazuddin R., Verma R., Singh K., Nisha N., Keisham M., Bhati K.K., Kim S.T., Gupta R. (2020). Ethylene: A master regulator of salinity stress tolerance in plants. Biomolecules 10: 959.
Google Scholar    Cross Ref

Tolkachev N.Z., Dubovenko E.K., Chechelnitskaya L.N. (1995). Inactive strain of nodule bacteria of soybean. 9th Bach colloquium on nitrogen fixation. Pushchino 28: 24-26.
Google Scholar    Cross Ref

Wang K.L.C., Li H., Ecker J.R. (2002). Ethylene biosynthesis and signaling networks. The Plant Cell 14: S131-S151.
Google Scholar    Cross Ref

Weller J.L., Foo E.M., Hecht V., Ridge S., Vander Schoor J. K., Reid J.B. (2015). Ethylene signaling influences light-regulated development in pea. Plant Physiology 169: 115-124.
Google Scholar    Cross Ref
